Johnson / Evinrude

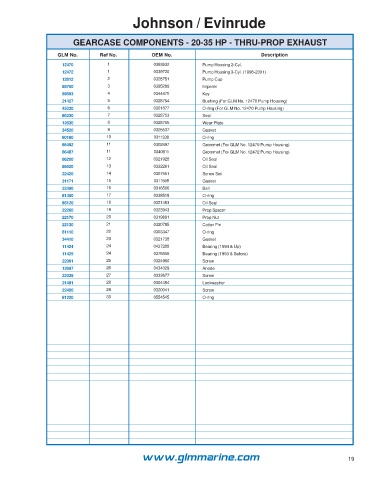

GEARCASE COMPONENTS - 20-35 HP - THRU-PROP EXHAUST

GLM No. Ref No. OEM No. Description
12470 1 0393632 Pump Housing 2-Cyl.
12472 1 0339720 Pump Housing 3-Cyl. (1996-2001)
12812 2 0328751 Pump Cup
89750 3 0395289 Impeller
89593 4 0344470 Key
21427 5 0328754 Bushing (For GLM No. 12470 Pump Housing)
45230 6 0301877 O-ring (For GLM No. 12470 Pump Housing)
86230 7 0328753 Seal
12630 8 0328755 Wear Plate
34520 9 0325537 Gasket
80180 10 0311338 O-ring
86492 11 0302497 Grommet (For GLM No. 12470 Pump Housing)
86487 11 0340811 Grommet (For GLM No. 12472 Pump Housing)
86200 12 0321928 Oil Seal
86520 13 0332261 Oil Seal
22420 14 0307551 Screw Set
31171 15 0311598 Gasket
22490 16 0316506 Ball
81450 17 0338518 O-ring
85120 18 0321453 Oil Seal
22260 19 0323943 Prop Spacer
22170 20 0319891 Prop Nut
22130 21 0320785 Cotter Pin
81110 22 0303347 O-ring
34410 23 0321738 Gasket
11424 24 0437288 Bearing (1994 & Up)
11425 24 0376856 Bearing (1993 & Before)
22361 25 0324960 Screw
12697 26 0434029 Anode
22335 27 0333677 Screw
21491 28 0304454 Lockwasher
22400 29 0320041 Screw
81220 30 0554545 O-ring
