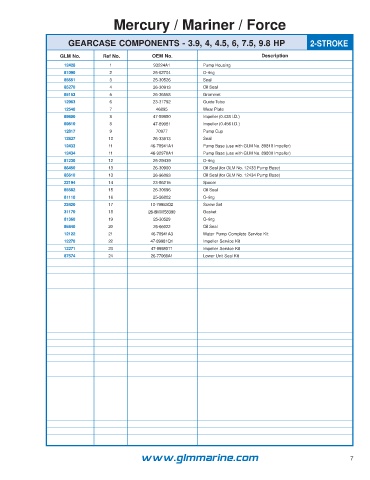

Mercury / Mariner / Force



                        GEARCASE COMPONENTS - 3.9, 4, 4.5, 6, 7.5, 9.8 HP                               2-STROKE

                     GLM No.       Ref No.         OEM No.                              Description
                      12428          1              93224A1         Pump Housing
                      81090          2              25-62704        O-ring
                      85651          3              25-30526        Seal
                      85270          4              26-30913        Oil Seal
                      85153          5              26-36558        Grommet
                      12963          6              23-31792        Guide Tube
                      12540          7               46895          Wear Plate
                      89800          8              47-89980        Impeller (0.438 I.D.)
                      89810          8              47-89981        Impeller (0.456 I.D.)
                      12817          9               70977          Pump Cup
                      12837          10             26-33613        Seal
                      12433          11            46-70941A1       Pump Base (use with GLM No. 89810 Impeller)
                      12434          11            46-92970A1       Pump Base (use with GLM No. 89800 Impeller)
                      81230          12             25-29439        O-ring
                      86450          13             26-30900        Oil Seal (for GLM No. 12433 Pump Base)
                      85610          13             26-96063        Oil Seal (for GLM No. 12434 Pump Base)
                      22194          14             23-86215        Spacer
                      85582          15             26-30696        Oil Seal
                      81110          16             25-26802        O-ring
                      22420          17            10-79953Q2       Screw Set
                      31170          18           26-8M0058390      Gasket
                      81360          19             25-30529        O-ring
                      86840          20             26-66022        Oil Seal
                      12122          21            46-70941A3       Water Pump Complete Service Kit
                      12270          22            47-89981Q1       Impeller Service Kit
                      12271          23            47-89980T1       Impeller Service Kit
                      87574          24            26-77066A1       Lower Unit Seal Kit
