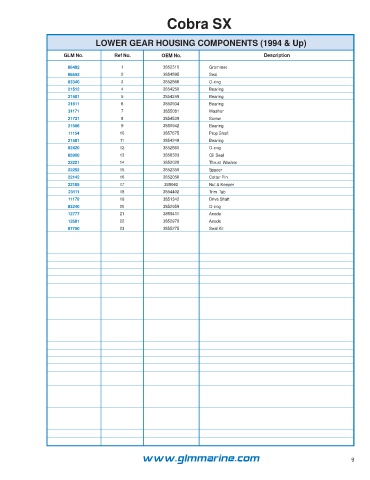

Cobra SX
LOWER GEAR HOUSING COMPONENTS (1994 & Up)
GLM No. Ref No. OEM No. Description
86482 1 3852315 Grommet
86653 2 3854595 Seal
83340 3 3852866 O-ring
21512 4 3854250 Bearing
21581 5 3854249 Bearing
21611 6 3853934 Bearing
31171 7 3855081 Washer
21731 8 3854539 Screw
21586 9 3850942 Bearing
11154 10 3857675 Prop Shaft
21581 11 3854249 Bearing
82420 12 3852865 O-ring
85900 13 3858303 Oil Seal
22221 14 3852020 Thrust Washer
22252 15 3852350 Spacer
22142 16 3852056 Cotter Pin
22185 17 398042 Nut & Keeper
23111 18 3854402 Trim Tab
11170 19 3851342 Drive Shaft
83240 20 3852959 O-ring
12777 21 3855411 Anode
12681 22 3852970 Anode
87750 23 3855275 Seal Kit
