Yamaha

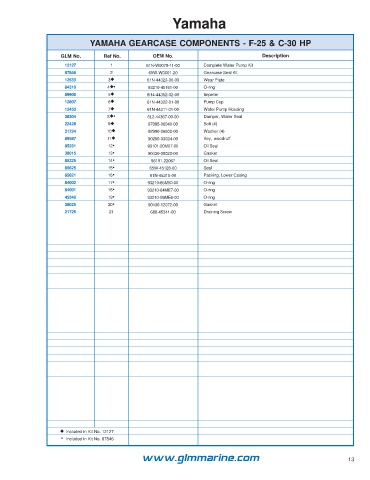

                               YAMAHA GEARCASE COMPONENTS - F-25 & C-30 HP

                     GLM No.       Ref No.          OEM No.                             Description
                      12127           1          61N-W0078-11-00    Complete Water Pump Kit
                      87846           2           65W-W0001-20      Gearcase Seal Kit
                      12533          3           61N-44323-00-00   Wear Plate
                      84310          4•          93210-45161-00    O-ring
                      89900          5           6H4-44352-02-00   Impeller
                      12807          6           61N-44322-01-00   Pump Cup
                      12453          7           61N-44311-01-00   Water Pump Housing
                      38304          8•          6L2-44367-00-00   Damper, Water Seal
                      22428          9           97095-06040-00    Bolt (4)
                      21724         10           92990-06600-00    Washer (4)
                      89587          11          90280-03024-00    Key, woodruff
                      85231          12•          93101-20M07-00    Oil Seal
                      38015          13•          90430-08020-00    Gasket
                      85225          14•           93101-22067      Oil Seal
                      85625          15•          65W-45128-00      Seal
                      85621          16•           61N-45315-00     Packing, Lower Casing
                      84002          17•          93210-65M50-00    O-ring
                      84001          18•          93210-64ME7-00    O-ring
                      45340          19•          93210-06ME6-00    O-ring
                      38025          20•          90430-12072-00    Gasket
                      21729          21            688-45341-00     Draining Screw











































                      Included in Kit No. 12127
                     • Included in Kit No. 87846

                                                www.glmmarine.com                                                   13
