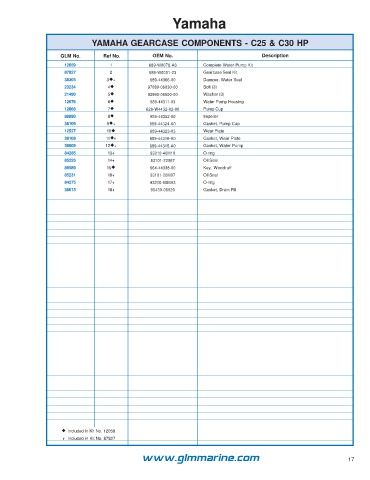

                               YAMAHA GEARCASE COMPONENTS - C25 & C30 HP

                     GLM No.       Ref No.         OEM No.                              Description
                      12059          1            689-W0078-A6      Complete Water Pump Kit
                      87827          2            689-W0001-23      Gearcase Seal Kit
                      38305         3+            689-44366-00     Damper, Water Seal
                      23234          4           97080-06030-00    Bolt (3)
                      21490          5           92990-06600-00    Washer (3)
                      12076          6            689-44311-03     Water Pump Housing
                      12868          7          626-W4432-02-00    Pump Cup
                      89890          8            689-44352-00     Impeller
                      38109         9+            689-44324-A0     Gasket, Pump Cup
                      12527         10            689-44323-03     Wear Plate
                      38108         11+           689-44316-A0     Gasket, Wear Plate
                      38009         12+           689-44315-A0     Gasket, Water Pump
                      84285          13+           93210-40M10      O-ring
                      85225          14+           83101-22067      Oil Seal
                      89589         15            664-44338-00     Key, Woodruff
                      85231          16+           93101-20M07      Oil Seal
                      84275          17+           93210-60MA3      O-ring
                      38015          18+           90430-08020      Gasket, Drain Fill















































                      Included in Kit No. 12059
                      + Included in Kit No. 87827
